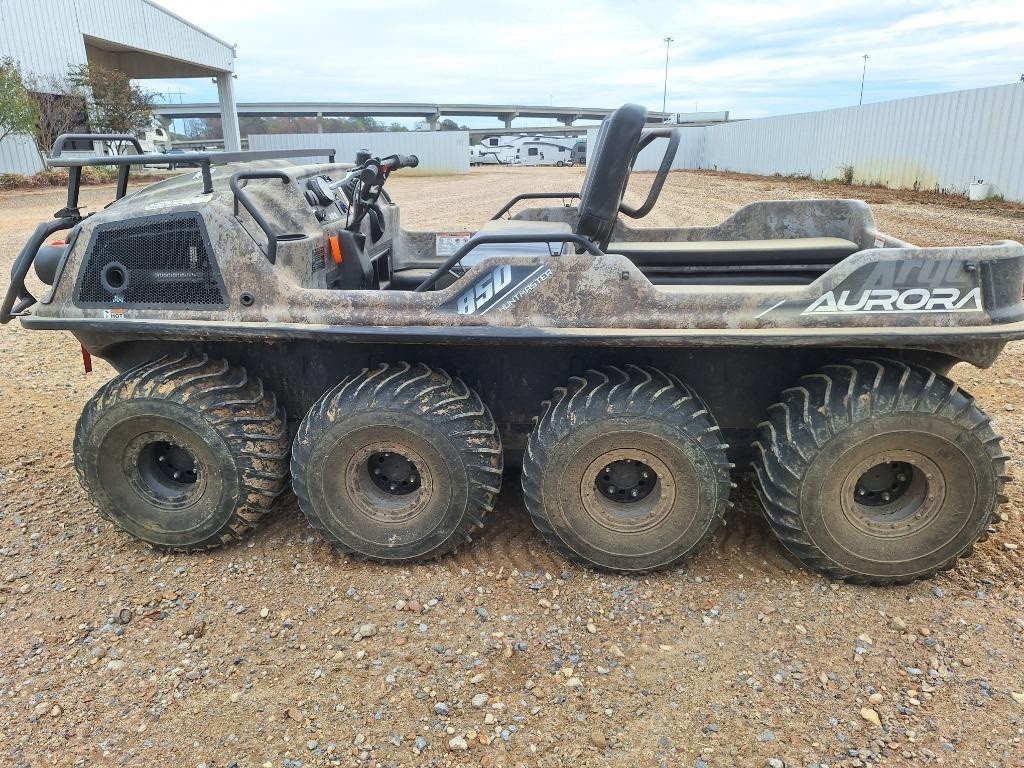

Argo Aurora 850 Huntmaster is an 8×8 amphibious XTV aimed at hunters and off-grid work. 2023 model year; full new factory warranty. It is a go-anywhere machine that drives on land, mud, snow, and water without a trailer or boat.
Engine: LX 850 / ODG–Loncin LC2V90FD
Type: 4-stroke OHV V-twin, air/fan-cooled
Displacement: 999 cc (90 x 78.5 mm)
Horsepower: 32 hp (24 kW)
Fuel system: Pulse carburetor
Starting: Electric
Lubrication: Splash + pressure
Clutch: Instant Torque Clutch (ITC)
Transmission: ODG Admiral with APS (progressive steering)
Drive: Double RC50 + single RC60 roller chain
Brakes: Hydraulic service and steering discs
Battery: 12V 30 Ah
Land payload: 990 lb (449 kg)
Water payload: 790 lb (358 kg)
Towing: 1,800 lb (816 kg)
Seats land / water: 6 / 4
Fuel: 8.5 gal (32.2 L) — 87 octane unleaded
Land speed: 25 mph (40 km/h)
Water speed: 3 mph (5 km/h)
Weight: 1,560 lb (708 kg)
Length: 126 in (3,200 mm) including winch
Width: 60 in (1,524 mm)
Height: 51 in (1,295 mm)
Ground clearance: 10 in tires / 11 in tracks
Track ground pressure: 0.88 psi (18" rubber tracks)
Tires: ARGO XT117 25x12-9
Rims: 9" steel AirLock beadlock
Tire pressure: 2.5–3.5 psi (17–24 kPa)
FLUIDS
Engine oil: Argo 5W-40 synthetic
2.21 qt drain / 2.4 qt with filter
Transmission: Argo 75W-90 synthetic — 1.3 qt
Brake fluid: DOT 4
Chain lube: Argo PTFE
Grease: Argo NLGI #2 lithium
HUNTMASTER STANDARD EQUIPMENT
TrueTimber Prairie Camo HDPE body
Heavy-duty front brushguard
3,500 lb winch (Warn/XPW; synthetic rope on many units)
Steel front/hood rack
Dual hi/low projector headlights
LED tail/brake lights
Full-length skid plate
Bilge pump
Front and rear axle bearing extensions (flip rims to install tracks)
Premium gauge
Steel fuel tank
Tracks can be added for an additional $4000. Sales tax will apply for in-state sales. Monthly pay may be available wac.
